Diaphragm pumps are a type of centrifugal pump that works by using a diaphragm to divide the pump chamber into two sealed chambers. One side of the diaphragm is connected to the pump's suction port, while the other side is connected to the discharge port. The diaphragm pump mainly includes two stages during operation: the discharge stage and the suction stage. When the piston or plunger of the pump moves, the diaphragm also moves, causing a change in the volume of the two chambers, thus allowing for the suction and discharge of liquids. The diaphragm pump diaphragm sealing element isolates the pump chamber from the conveyed medium.

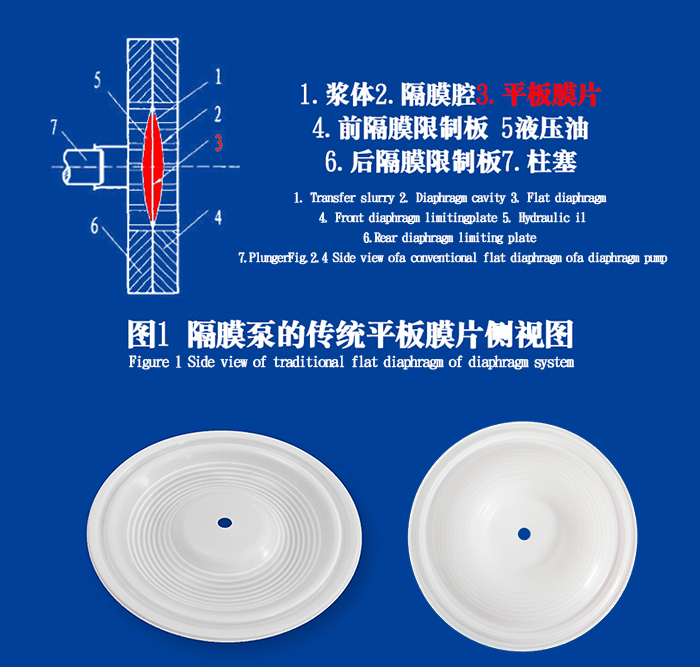

Diaphragm pump diaphragm sealing elements are usually made of elastic materials with certain elasticity and corrosion resistance, which can withstand high pressure and high temperature. The design and material selection of the diaphragm have an important influence on the performance and life of the diaphragm pump. Therefore, it is necessary to select and optimize according to specific working conditions. The diaphragm in the diaphragm pump serves as a shaft seal and separates the hydraulic oil and conveyed slurry, ensuring that the conveyed slurry only contacts the internal components of the diaphragm chamber and not the sealing device of the power end, thereby ensuring the service life of these components. At the same time, the diaphragm also acts as the discharge diaphragm of the diaphragm pump, which is closely related to the pump's discharge.
The working principle of the diaphragm pump is different from other centrifugal pumps. It uses a diaphragm to divide the pump chamber into two sealed chambers, which isolates the conveyed medium from the power part of the pump, avoiding medium leakage and pollution. In addition, the diaphragm pump can work in a dry-running state without additional lubricants, so it has high safety and reliability. The diaphragm pump is widely used in industries such as chemical, pharmaceutical, food, and papermaking, and can transport various corrosive, high viscosity, high temperature, and high solid content media, exhibiting strong adaptability and flexibility.
The design and material selection of diaphragm pump diaphragm sealing elements have an important influence on the performance and life of the diaphragm pump. Diaphragm pump diaphragm sealing elements are usually made of materials such as rubber, polytetrafluoroethylene, and polyester, which have certain elasticity and corrosion resistance and can withstand high pressure and high temperature. The thickness and shape of the diaphragm also affect the performance and life of the pump. Generally, the thicker the diaphragm, the more durable it is, but it will also affect the pump's performance and efficiency. Therefore, when selecting diaphragm pump diaphragms, it is necessary to consider factors such as the properties of the working medium, working conditions, and pump performance requirements comprehensively.
The service life of the diaphragm pump diaphragm sealing element is one of the important factors directly affecting the operating time and working efficiency of the diaphragm pump. Diaphragm wear can cause a decrease in pump displacement, deterioration of pump performance, and even pump damage, so it is necessary to inspect and replace the diaphragm regularly. When replacing the diaphragm, attention should be paid to the installation and adjustment of the diaphragm to ensure that the diaphragm's position and tension meet the requirements and to avoid leakage and vibration.
In summary, the diaphragm pump diaphragm sealing element is one of its key components, playing a role in isolating the pump chamber and conveyed medium, isolating the power part and conveyed medium, regulating the pump's discharge and performance, etc. When selecting diaphragm materials and designs, it is necessary to consider factors such as the properties of the working medium, working conditions, and pump performance requirements comprehensively. Regular inspection and replacement of the diaphragm can ensure the normal operation and working efficiency of the diaphragm pump.
